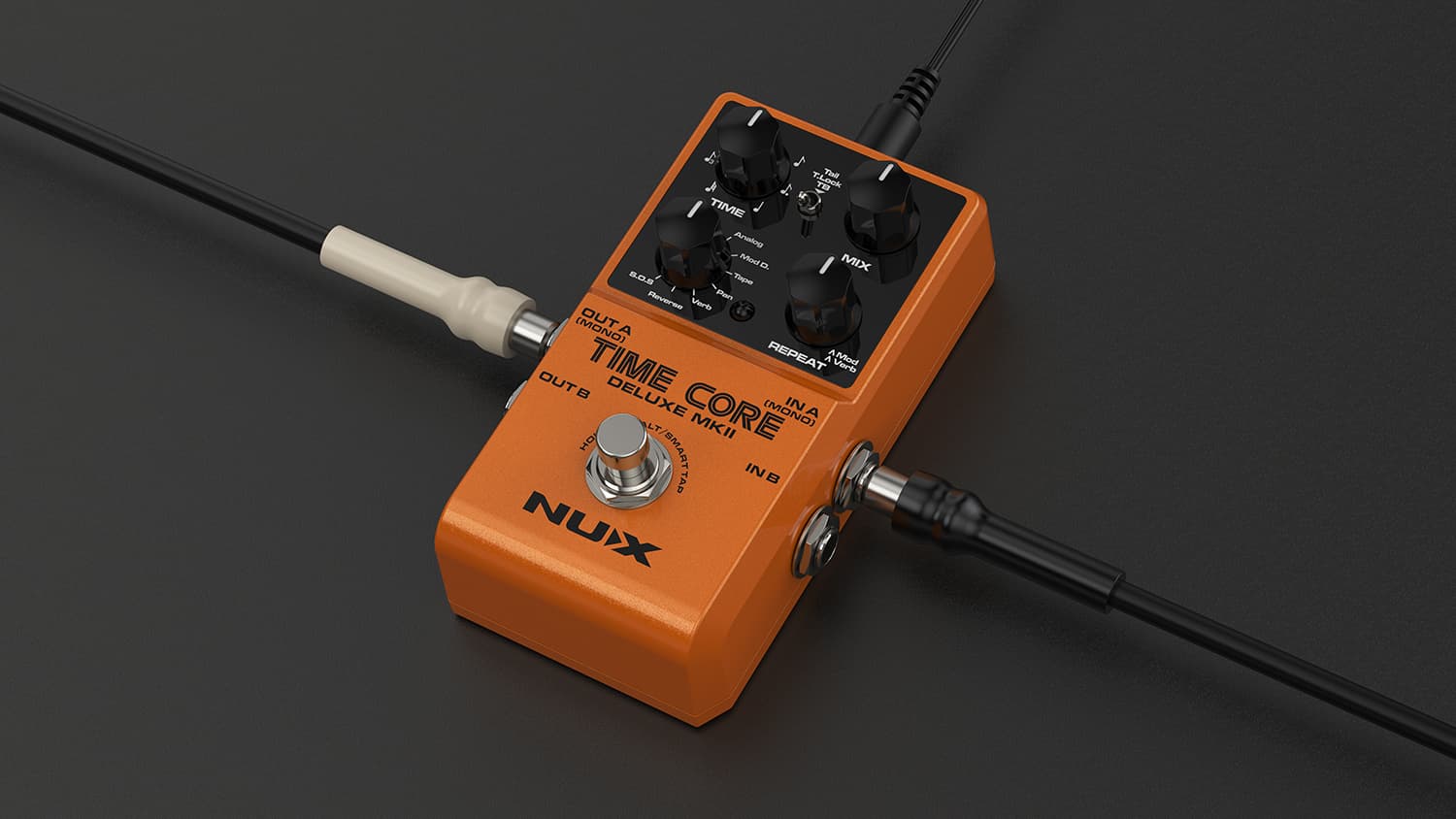

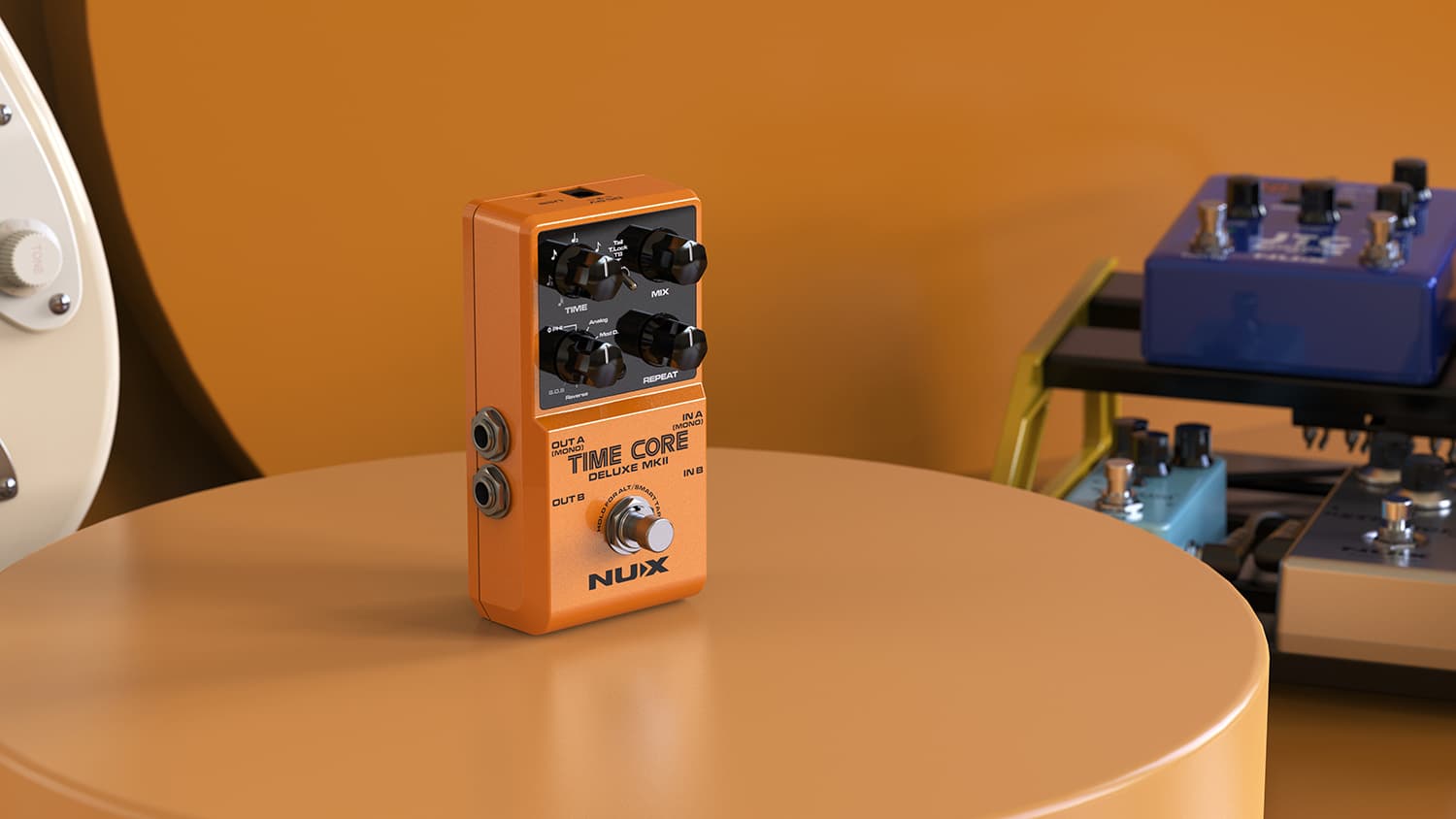

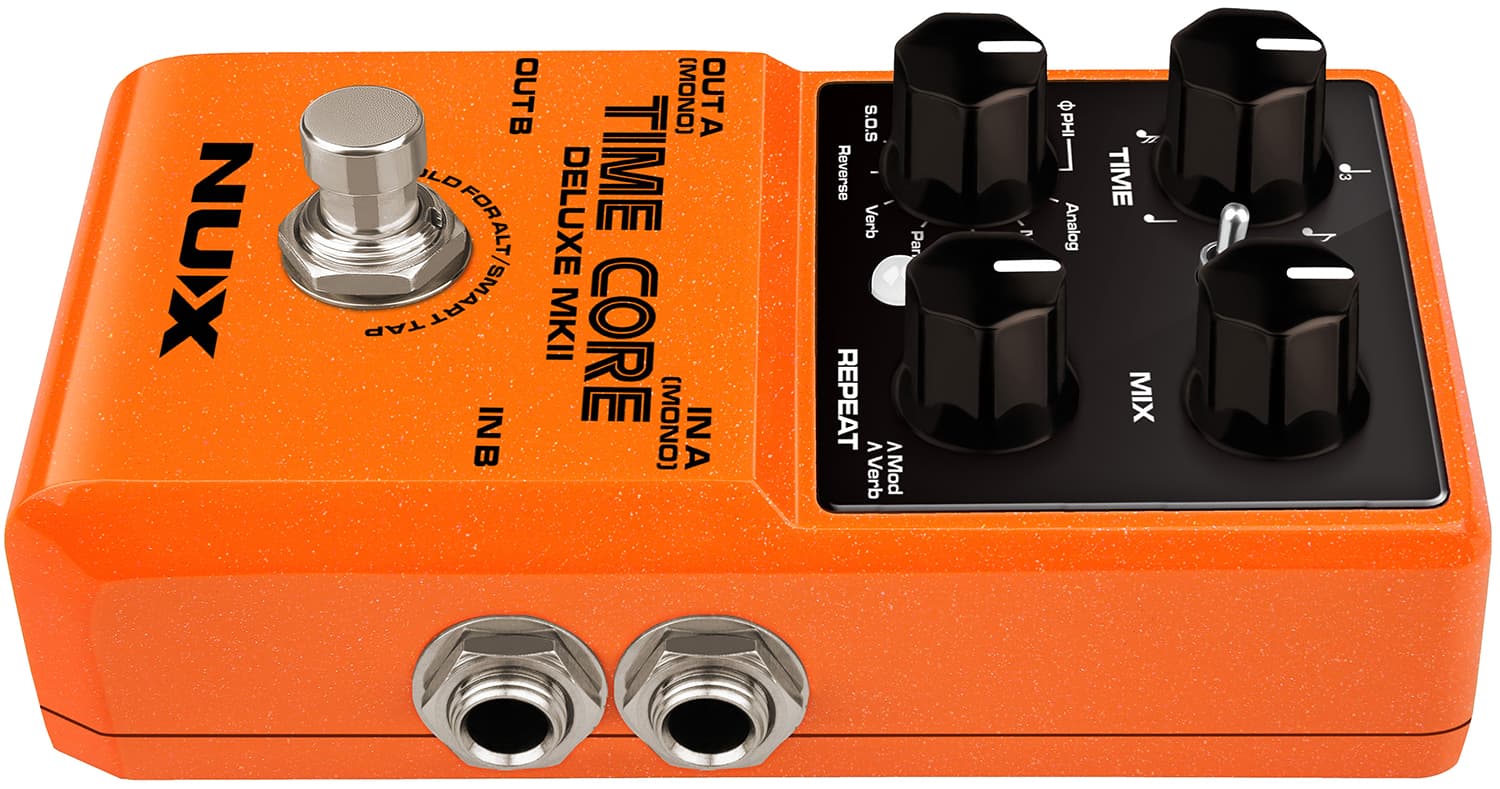

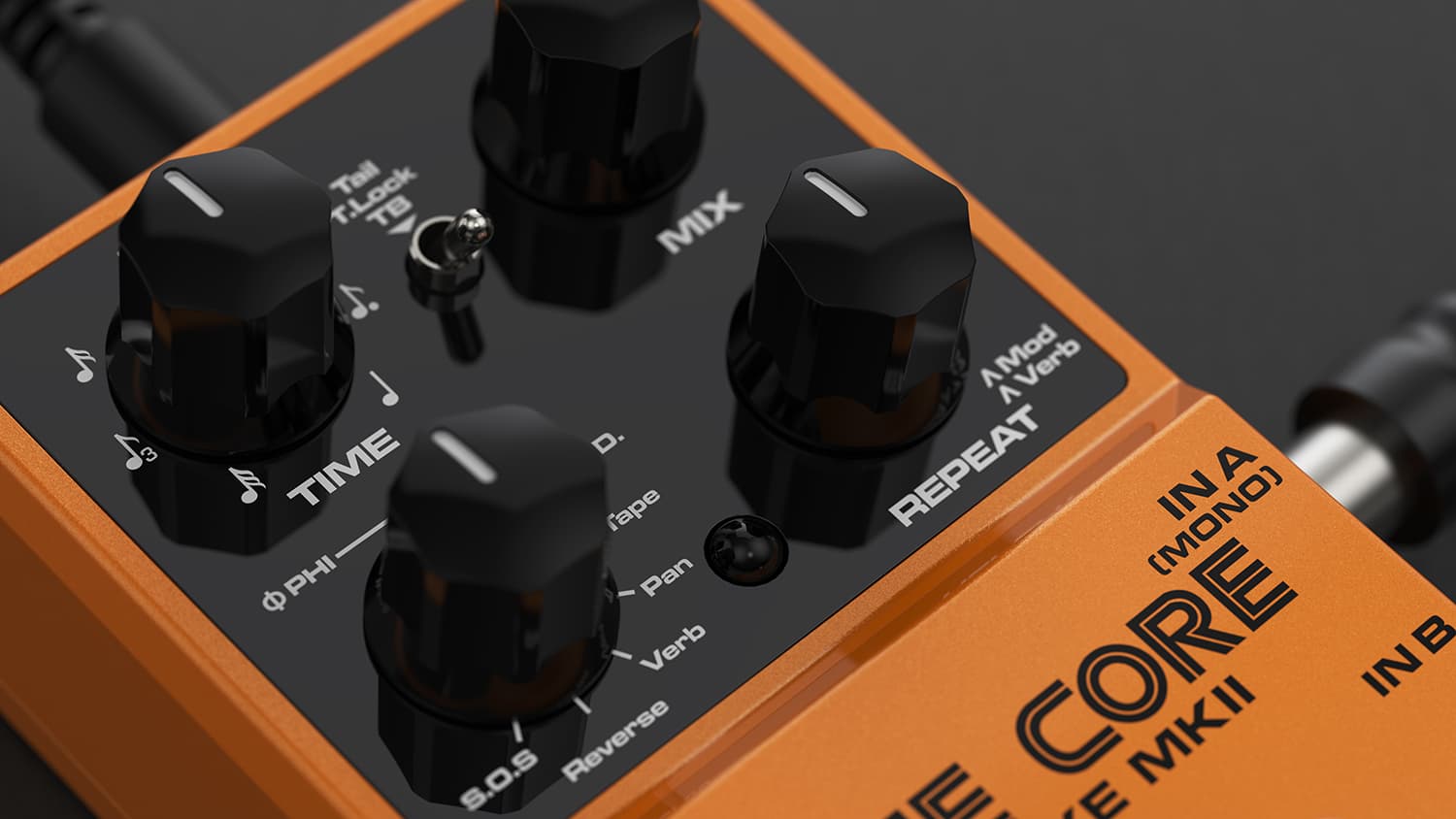

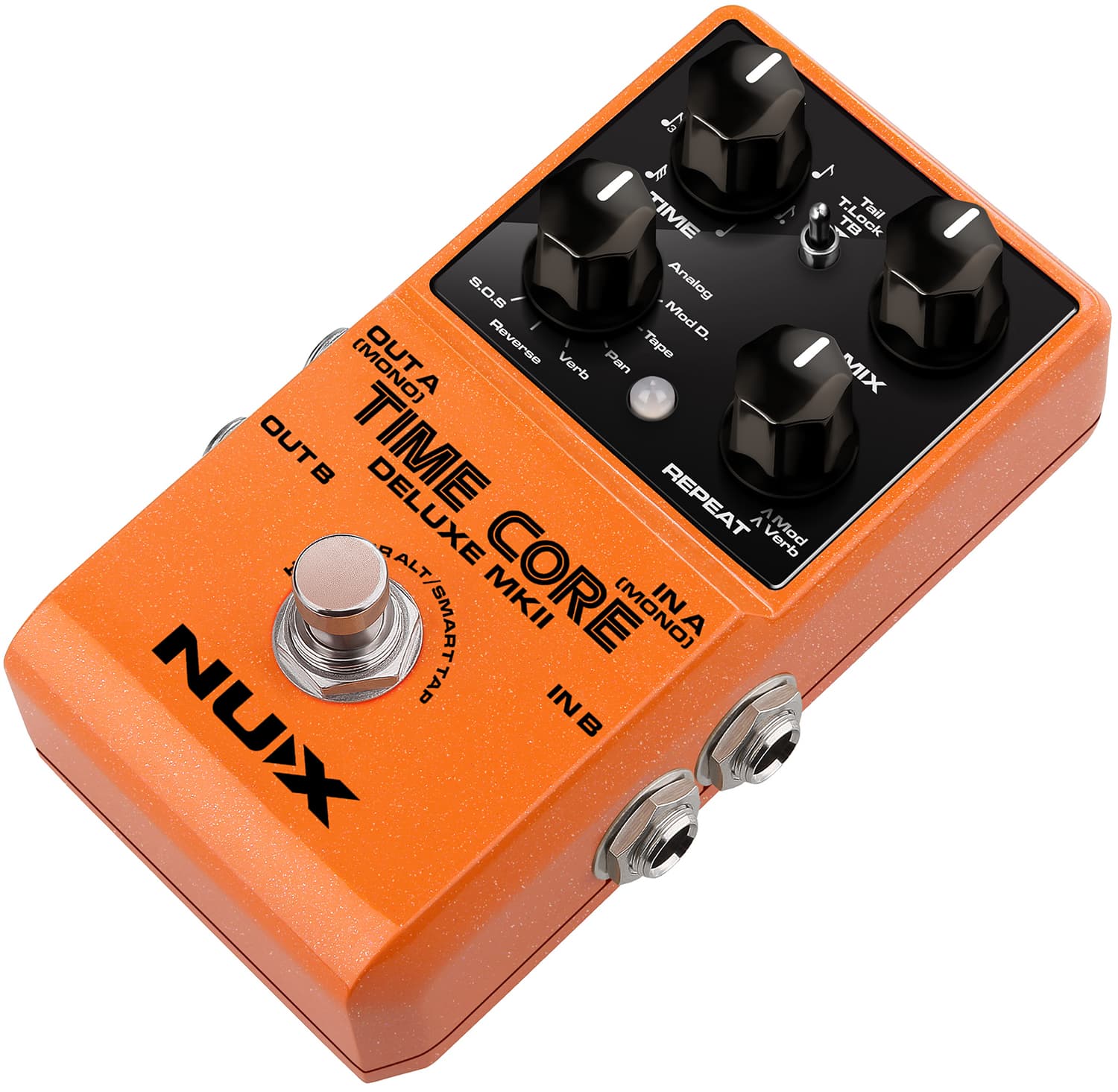

1 / 6Time Core Deluxe mkII Pedal
Time Core Deluxe mkII is the next generation digital delay pedal from NU-X, with 7 selectable delay types. Simulation of highly revered analog, tape and digital effect pedals with the benefit of up-to-date features such as tap-tempo, kill dry and buffered tail bypass offer a choice of high end delay effects with augmented flexibility. New additions include the proprietary Phi delay, SOS looper and layered reverb. From short slap-back echo to long multi-tap repeats, the Time Core Deluxe mkII covers practically any delay duties required for your pedal board.
Enter the email on your Apollo student or contact record. You only need to do this once.
PRODUCT HIGHLIGHTS
- Full stereo or mono signal path
- True or buffered bypass options
- 7 distinct delay types
- 40 second looper function
- USB-C port for firmware updates
- Requires suitable 9Vdc power adaptor (e.g. 173.290UK)
SPECIFICATIONS
- Power supply
- 9Vdc power adaptor required
- Controls
- Time, Mix, Repeat, Delay type
- Recording mode
- 40 second sound-on-sound looper
- Modes
- Phi Digital, Analog, Modulation, Tape, Pan, Verb, Reverse delay
- Inputs
- L+R 6.3mm mono jack
- Outputs
- L+R 6.3mm mono jack
- DC input connection
- DC5521 jack (for optional adaptor - pin-negative)
- Dimensions
- 122 x 72 x 47mm
- Weight
- 270g
- Sampling format
- 48kHz, 24-bit
- Input impedance
- 1M ohm
- Output impedance
- 1k ohm
- Dynamic range
- 104dB
- Current consumption
- <120mA
