NU-XPedals & Effects

Tape Echo Pedal

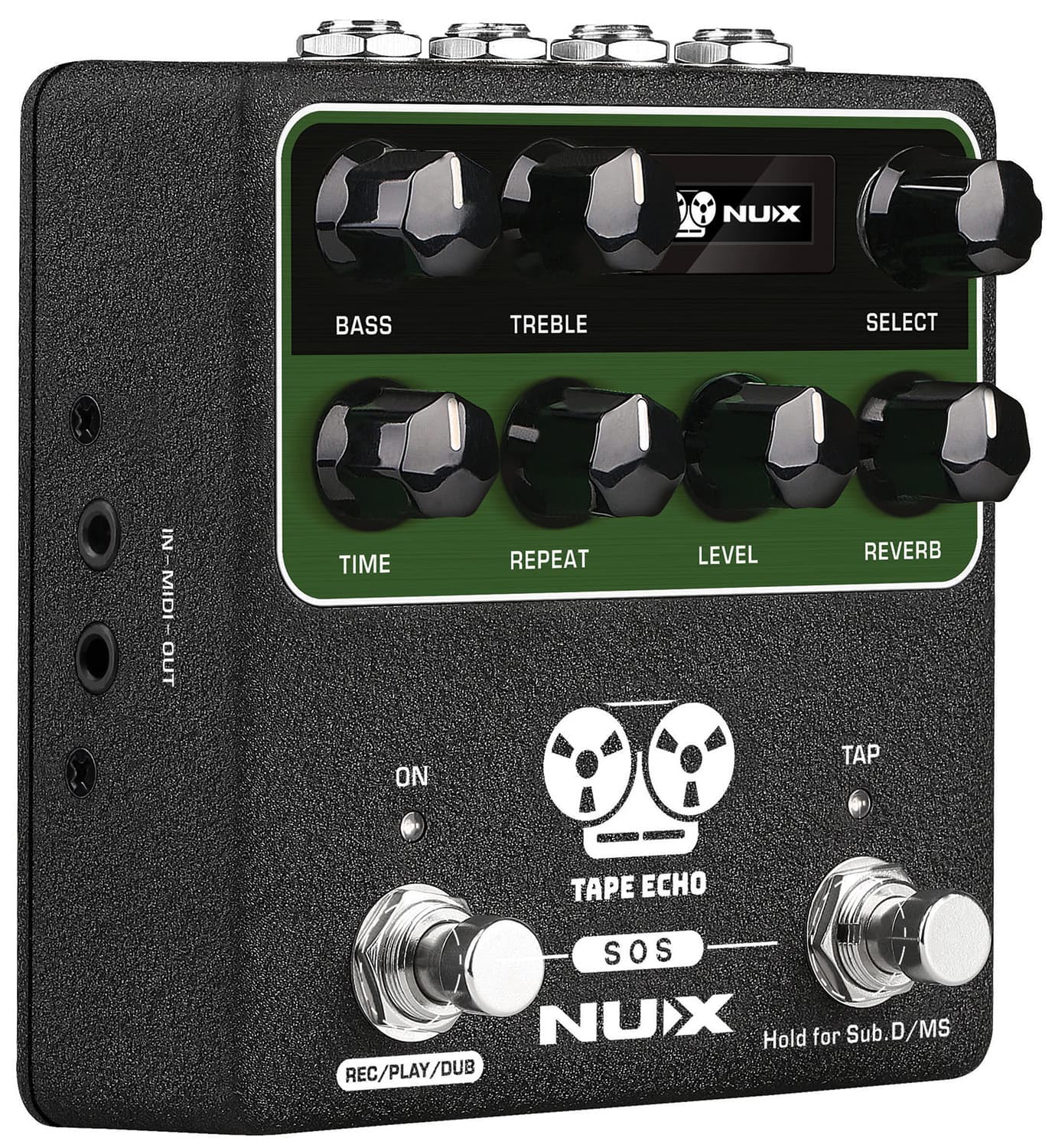

Tape Echo is an echo and delay processor with 7 different types of simulation to recreate the sound of vintage echo units. In addition to classic tape echo simulation, the NDD-7 has a separate spring reverb effect, sound-on-sound (SOS) for operation as a 40 second looper, and up to 1600ms of delay. For authenticity, the NDD-7 also has Wow & Flutter settings and Saturation adds natural compression and degradation, which can even drive into self-oscillation, like a true tape echo. Two foot switches operate as effect on/off and tap tempo and they double as looper and display controls. Above the foot switches are Time, Repeat, Level and Reverb controls and 2-band EQ governs the tone of repeats. USB connectivity and MIDI compatibility give further possibilities for deep control and integration with DAW and project studio setups. A full vintage echo collection in a single compact pedal for those seeking the genuine retro echo sound.

£169.00VAT included
In stock
Apollo student price

Enter the email on your Apollo student or contact record. You only need to do this once.

1
Secure payment £3.49 UK delivery Free from £50
WHY IT WORKS

PRODUCT HIGHLIGHTS

PRODUCT DETAILS

SPECIFICATIONS

Power supply
9Vdc, 300mA (min) pin-negative (not included)
Controls
Time, Repeat, Level, Reverb, Bass, Treble, Select
Dimensions
115 x 105 x 58mm
Weight
440g
Current consumption
<150mA
Sampling Frequency
48kHz
Sampling format
32-bit
Frequency response
20Hz - 20kHz (-1dB)
Input impedance
5M Ohms
Input level
1.5V max
Output level
1.5V max
Output impedance
100 Ohms
Latency
1ms
Dynamic range
103dBu / 105dBu (A-weighted)
THD +N
0.0038% (1Vrms, 1kHz) / 0.01% (1Vrms, 1kHz)
